Wheel hubs are crucial to a vehicle’s performance, safety, and overall driving experience. With advancements in materials and manufacturing techniques, the options available for wheel hubs have expanded dramatically. This comprehensive guide will delve into various materials and manufacturing methods used in the production of wheel hubs, helping you understand the benefits and drawbacks of each option. By leveraging this knowledge, you can make informed decisions when selecting wheel hubs for your vehicle and, as a business owner, better position your products in the market. Additionally, this guide is an invaluable resource for those interested in the technical aspects of wheel hub manufacturing.
1. Materials used in wheel hub manufacturing
Understanding the materials used in wheel hub manufacturing is essential, as the choice of material directly impacts the hub’s performance, weight, and durability. Here, we discuss the most common materials used in wheel hub production and their properties.
1.1. Steel
Steel is the traditional material used in wheel hub manufacturing due to its strength, durability, and cost-effectiveness. Steel wheel hubs are commonly found in entry-level vehicles and heavy-duty applications, requiring high load-bearing capacity.
Pros:
- High strength and durability
- Cost-effective
- Suitable for heavy-duty applications
Cons:
- Heavier compared to alternative materials
- Prone to corrosion if not properly protected
1.2. Aluminum
Aluminum is a popular choice for wheel hub manufacturing due to its lightweight properties and good strength-to-weight ratio. Aluminum wheel hubs are commonly found in passenger cars, sports cars, and electric vehicles, where weight reduction is a priority.
Pros:
- Lightweight, improving fuel efficiency and vehicle performance
- Good strength-to-weight ratio
- Resistant to corrosion
Cons:
- Higher cost compared to steel
- Not as strong as steel, limiting its use in heavy-duty applications
1.3. Magnesium
Magnesium is another lightweight material used in wheel hub manufacturing, offering an even lower weight than aluminum. However, magnesium wheel hubs are less common due to their higher cost and lower strength.
Pros:
- Extremely lightweight, further improving vehicle performance
- Decent strength-to-weight ratio
Cons:
- More expensive than aluminum and steel
- Lower strength compared to aluminum and steel
- Prone to corrosion
1.4. Carbon fiber
Carbon fiber is a high-performance material used in wheel hub manufacturing, primarily for high-end sports cars and luxury vehicles. Carbon fiber wheel hubs offer exceptional strength and low weight but come at a significantly higher cost.
Pros:
- Excellent strength-to-weight ratio
- Extremely lightweight
- Distinctive appearance
Cons:
- Expensive compared to other materials
- Complex manufacturing process
2. Manufacturing techniques for wheel hubs
Several manufacturing techniques are used in the production of wheel hubs, each with advantages and limitations. Understanding these methods can help you appreciate the intricacies involved in wheel hub manufacturing and make informed decisions when selecting wheel hubs.
2.1. Casting

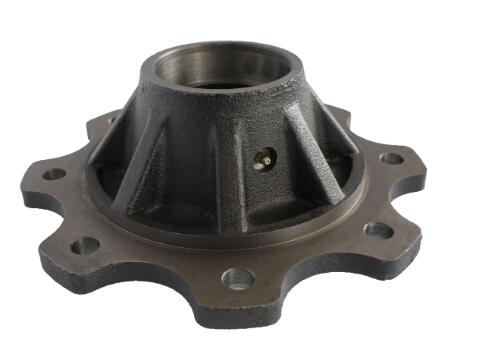

Casting is a widely used manufacturing technique for wheel hubs, particularly aluminum, and magnesium. In this process, molten metal is poured into a mold, which is then allowed to cool and solidify, forming the desired wheel hub shape.
2.1.1. Gravity casting
Gravity casting involves pouring molten metal into a mold and allowing gravity to fill the mold cavities. This process is relatively simple and cost-effective but may result in inconsistent material density and potential weak points in the final product.
Pros:
- Simple and cost-effective
- Suitable for a variety of materials
Cons:
- Inconsistent material density
- Potential weak points in the final product
2.1.2. Low-pressure casting
Low-pressure casting involves injecting molten metal into a mold under controlled pressure, resulting in a more consistent material density and improved mechanical properties than gravity casting. This method is widely used in the production of aluminum wheel hubs.
Pros:
- Improved material density and mechanical properties
- Suitable for a variety of materials
Cons:
- More expensive and complex than gravity casting
2.1.3. High-pressure die casting
High-pressure die casting involves injecting molten metal into a mold at high pressure, resulting in rapid filling and cooling. This method offers excellent dimensional accuracy and surface finish, making it a popular choice for the mass production of aluminum and magnesium wheel hubs.
Pros:
- High production rates
- Excellent dimensional accuracy and surface finish
Cons:
- High tooling and equipment costs
- Limited material options
2.2. Forging
Forging is a manufacturing technique that involves shaping metal using compressive force, typically through hammering or pressing. Forged wheel hubs offer exceptional strength and durability, making them popular for high-performance and heavy-duty applications.
2.2.1. Open-die forging
Open-die forging involves shaping metal between two flat dies without completely enclosing the material. This process is suitable for producing large, heavy wheel hubs but may produce a less precise final product than closed-die forging.
Pros:
- Suitable for large, heavy wheel hubs
- Excellent strength and durability
Cons:
- Less precise than closed-die forging
- Higher material waste
2.2.2. Closed-die forging
Closed-die forging involves shaping metal within a closed die cavity, producing a more precise final product with minimal material waste. This method is widely used to produce high-performance wheel hubs, particularly aluminum, and steel.
Pros:
- High precision and minimal material waste
- Excellent strength and durability
Cons:
- High tooling and equipment costs
- Limited to certain materials and sizes
2.3. Machining
Machining is a subtractive manufacturing technique that removes material from a solid block or pre-formed component to create the desired wheel hub shape. This method can be used for various materials, including steel, aluminum, magnesium, and carbon fiber.
2.3.1. CNC machining
CNC (Computer Numerical Control) machining involves using computer-controlled machine tools to remove material from a solid block or pre-formed component with high precision and repeatability. CNC machining is widely used to produce custom wheel hubs and small batch runs, requiring precise tolerances and complex geometries.
Pros:
- High precision and repeatability
- Suitable for custom wheel hubs and small batch runs
Cons:
- High tooling and equipment costs
- Time-consuming for large production volumes
2.4. Additive manufacturing (3D printing)
Additive manufacturing, commonly known as 3D printing, is a relatively new manufacturing technique that involves building a wheel hub layer by layer from a digital model. This method offers unparalleled design freedom and customization capabilities, making it ideal for producing unique and complex wheel hubs.
2.4.1. Powder bed fusion
Powder bed fusion involves using a laser or electron beam to selectively melt a layer of metal powder, solidifying it to form the desired wheel hub shape. This method is suitable for producing lightweight and complex wheel hubs, particularly from aluminum and titanium.
Pros:
- Unparalleled design freedom
- Suitable for lightweight and complex wheel hubs
Cons:
- Expensive and time-consuming
- Limited material options
3. Conclusion
Selecting the right wheel hub material and manufacturing technique is critical for optimizing vehicle performance, safety, and aesthetics. By understanding the properties of different materials and the advantages and limitations of various manufacturing methods, you can make informed decisions when selecting wheel hubs for your vehicle or positioning your products in the market. This comprehensive guide is valuable for vehicle owners, industry professionals, and enthusiasts, providing in-depth knowledge of wheel hub materials and manufacturing techniques.
To recap, here are the key takeaways from this guide:
- Steel is the traditional material used in wheel hub manufacturing, offering high strength, durability, and cost-effectiveness. However, it is heavier than alternative materials and prone to corrosion if not properly protected.
- Aluminum and magnesium are popular lightweight materials used in wheel hub manufacturing, improving fuel efficiency and vehicle performance. While aluminum offers a good strength-to-weight ratio and corrosion resistance, magnesium is lighter but has lower strength and is more susceptible to corrosion.
- Carbon fiber is a high-performance material used in wheel hub manufacturing, primarily for high-end sports cars and luxury vehicles. It offers exceptional strength and low weight but comes at a significantly higher cost.
- Casting is a widely used manufacturing technique for wheel hubs, particularly aluminum, and magnesium. Gravity casting, low-pressure casting, and high-pressure die casting each have advantages and limitations in terms of cost, material density, and production rates.
- Forging is a manufacturing technique that involves shaping metal using compressive force, resulting in exceptional strength and durability of wheel hubs. Open-die and closed-die forging offer different levels of precision, material waste, and tooling costs.
- Machining, including CNC, is a subtractive manufacturing technique that provides high precision and repeatability, making it suitable for custom wheel hubs and small batch runs. However, large production volumes can be time-consuming and cost high tooling and equipment.
- Additive manufacturing, or 3D printing, is a relatively new technique offering unparalleled design freedom and customization capabilities. Powder bed fusion is a common method for producing lightweight and complex wheel hubs, particularly from aluminum and titanium, but it can be expensive and time-consuming.
By leveraging this knowledge, you can make informed decisions when selecting wheel hubs for your vehicle, ensuring the best balance of performance, safety, and aesthetics. Moreover, as a business owner, understanding these materials and manufacturing techniques can help you better position your products in the market and stay ahead of the competition. With the continued advancements in materials and manufacturing technologies, the possibilities for wheel hub innovation are endless, paving the way for a future of improved vehicle performance, safety, and sustainability.
4. Material and manufacturing innovations on the horizon
As the automotive industry evolves, so do the materials and manufacturing techniques used in wheel hub production. You can anticipate trends and position your business for success by staying informed about emerging innovations. We discuss some promising developments for wheel hub materials and manufacturing techniques here.
4.1. Advanced alloys and composites
Researchers are continuously exploring new materials and material combinations to improve the performance of wheel hubs. Advanced alloys, such as aluminum-lithium and aluminum-scandium, promise enhanced strength-to-weight ratios compared to traditional aluminum alloys. Additionally, metal matrix composites, which combine a metal matrix with reinforcing fibers or particles, offer increased strength, stiffness, and wear resistance while maintaining a low weight.
4.2. Hybrid manufacturing
Hybrid manufacturing is an emerging approach that combines additive and subtractive manufacturing techniques to take advantage of the strengths of each method. For example, a wheel hub could be 3D printed using additive manufacturing to create complex internal geometries, followed by CNC machining to achieve high precision and surface finish for critical external features. This approach allows for increased design freedom, customization, and production efficiency.
4.3. Artificial intelligence (AI) and machine learning in manufacturing
The integration of AI and machine learning in manufacturing processes promises to revolutionize the production of wheel hubs. By analyzing vast amounts of data generated during manufacturing, AI algorithms can optimize production parameters in real time, reducing waste, improving quality, and increasing production efficiency. Additionally, AI-driven generative design tools can assist engineers in developing lightweight, high-performance wheel hub designs by automatically generating and evaluating thousands of design iterations.
As environmental concerns become increasingly important, sustainable and circular manufacturing approaches are gaining traction in the wheel hub industry. This includes using recycled materials, reducing waste during production, and designing wheel hubs for easy disassembly and recycling at the end of their life cycle. By embracing these principles, businesses can reduce their environmental footprint while meeting the demands of eco-conscious consumers.
5. Impact of electric vehicles on wheel hub materials and manufacturing techniques
The growing popularity of electric vehicles (EVs) has significantly impacted wheel hub materials and manufacturing techniques. As EVs prioritize lightweight construction to maximize range and performance, advanced materials and manufacturing methods become increasingly important.
5.1. Weight reduction for electric vehicles
Weight reduction is crucial for improving EV efficiency and range. As a result, lightweight materials, such as aluminum, magnesium, and carbon fiber, are highly sought after in the wheel hub industry. Manufacturers are also exploring advanced alloys and composites to reduce weight further while maintaining strength and durability. In addition, innovative manufacturing methods, such as additive and hybrid, offer opportunities for creating lightweight and complex wheel hub designs tailored specifically for EV applications.
5.2. Regenerative braking and wheel hub design
Regenerative braking, a feature commonly found in EVs, allows the vehicle to recover energy during braking and store it in the battery for later use. This technology places unique demands on wheel hub design, as it can generate higher loads and stresses than traditional braking systems. Consequently, wheel hub materials and manufacturing techniques must ensure sufficient strength and durability to withstand these additional forces.
5.3. Integration of motors and electronics

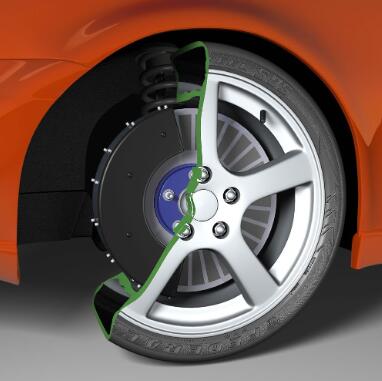

Some EVs use in-wheel motor systems, directly integrating electric motors into the wheel hub. This design approach requires compact, lightweight, high-strength wheel hubs capable of accommodating the motor and related electronics. Advanced materials and manufacturing techniques are critical in developing such wheel hubs, ensuring optimal performance and reliability.
6. Quality control and testing in wheel hub manufacturing
Ensuring the quality and safety of wheel hubs is of utmost importance in the automotive industry. Rigorous quality control and testing processes are employed throughout manufacturing to guarantee the performance, durability, and safety of wheel hubs.

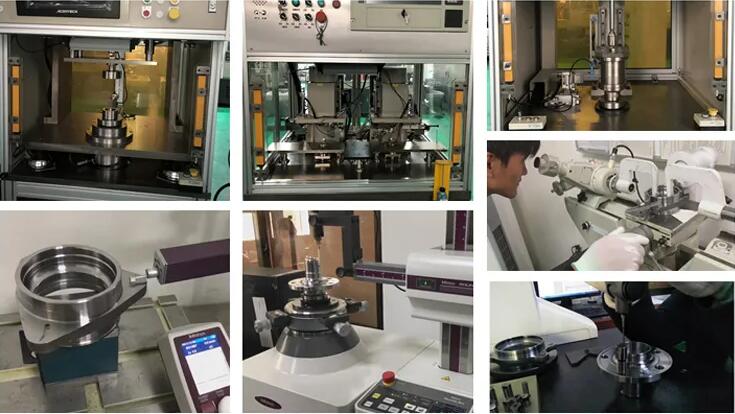

6.1. Inspection and measurement
During and after manufacturing, wheel hubs are subjected to various inspection and measurement processes to verify their dimensions, tolerances, and surface finish. Common techniques include coordinate measuring machines (CMMs), laser scanners, and optical comparators. These tools ensure the wheel hubs meet the required specifications and function correctly when installed on a vehicle.
6.2. Material testing
Material testing is an essential aspect of wheel hub quality control, ensuring that the materials used in the production meet the required specifications and properties. Common material tests include tensile testing, hardness testing, and impact testing. These tests evaluate the strength, ductility, and toughness of the materials used in wheel hub manufacturing, helping to ensure the final product’s performance and durability.
6.3. Non-destructive testing (NDT)
Non-destructive testing is a crucial step in wheel hub quality control, as it allows for inspecting the wheel hub’s internal structure without causing damage. Common NDT methods used in wheel hub manufacturing include radiographic testing (X-ray or gamma-ray), ultrasonic testing, magnetic particle testing, and liquid penetrant testing. These techniques can identify potential defects or weaknesses in the wheel hub’s structure, such as cracks, voids, or inclusions, that could compromise its performance and safety.
6.4. Performance and durability testing
Wheel hubs are subjected to rigorous performance and durability testing to ensure they can withstand the demands of real-world driving conditions. Common tests include fatigue testing, impact testing, and corrosion testing. These tests simulate the loads, stresses, and environmental conditions that wheel hubs will encounter throughout their service life, helping to ensure their long-term performance and reliability.

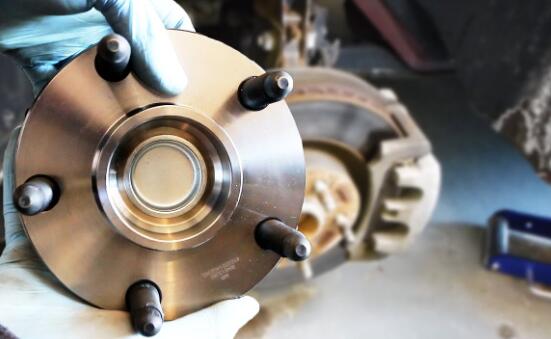

7. Wheel hub maintenance and replacement
Proper maintenance and timely replacement of wheel hubs are essential for ensuring the safety and performance of a vehicle. This section discusses the importance of wheel hub maintenance and replacement and some common signs of wheel hub wear or damage.
7.1. Importance of wheel hub maintenance
Regular wheel hub maintenance is crucial for optimal vehicle performance, safety, and handling. Routine inspections and maintenance tasks, such as cleaning, lubricating, and checking for signs of wear or damage, can help extend the lifespan of wheel hubs and prevent potential issues down the road. Proper maintenance also ensures that wheel hubs function correctly, reducing the risk of accidents or component failure.
7.2. Signs of wheel hub wear or damage
Several indicators indicate that a wheel hub may be worn or damaged, necessitating its replacement. Some common signs include:
- Unusual noises: Grinding, humming, or clicking noises from the wheel hub area may indicate a problem with the wheel bearing or other hub components.
- Excessive vibration: If you feel excessive vibration while driving, particularly when cornering or accelerating, it may indicate a worn or damaged wheel hub.
- Uneven tire wear: Abnormal or uneven patterns can indicate a misaligned or damaged wheel hub.
- ABS warning light: A malfunctioning wheel hub can cause the ABS (Anti-lock Braking System) warning light to illuminate on your dashboard.
- Steering issues: Difficulty steering or a loose-feeling steering wheel may indicate a problem with the wheel hub assembly.
7.3. When to replace wheel hubs
The lifespan of a wheel hub can vary depending on factors such as driving conditions, vehicle type, and maintenance habits. Generally, wheel hubs should be replaced if they show signs of wear or damage or if the vehicle’s manufacturer recommends replacement at a specific interval. In some cases, wheel hubs may need to be replaced as part of a larger repair or maintenance job, such as replacing a wheel bearing or brake component.
8. The role of wheel hub suppliers and manufacturers in the automotive industry
Wheel hub suppliers and manufacturers play a vital role in the automotive industry, providing a wide range of materials, manufacturing techniques, and products to meet the diverse needs of vehicle manufacturers and consumers. Suppliers and manufacturers can better serve their customers and contribute to vehicle performance, safety, and sustainability by staying up-to-date with the latest trends and innovations in wheel hub materials and manufacturing.
8.1. Collaborating with vehicle manufacturers
Close collaboration between wheel hub suppliers and vehicle manufacturers is essential for ensuring the seamless integration of wheel hubs into vehicle designs. By working together, suppliers and manufacturers can develop tailored solutions that meet the specific requirements of each vehicle model, optimizing performance, safety, and aesthetics.
8.2. Product development and innovation
Wheel hub suppliers and manufacturers must continually invest in research and development to stay ahead of industry trends and meet the evolving needs of the automotive market. By exploring new materials, manufacturing techniques, and design concepts, suppliers and manufacturers can develop innovative products that improve vehicle performance, safety, and sustainability while differentiating themselves from competitors.
8.3. Supply chain management
Efficient supply chain management is crucial for wheel hub suppliers and manufacturers, as it directly impacts their ability to deliver high-quality products on time and at a competitive price. Suppliers and manufacturers can ensure a reliable supply of wheel hubs to their customers while minimizing costs and environmental impact by optimizing their sourcing, production, and logistics processes.
In conclusion, this comprehensive guide to wheel hub materials and manufacturing techniques has provided an in-depth analysis of wheel hub production, quality control, and maintenance aspects. By understanding the properties of different materials, the advantages and limitations of various manufacturing methods, and emerging trends in the industry, you can make informed decisions when selecting wheel hubs for your vehicle or positioning your products in the market. With continued advancements in materials and manufacturing technologies, the possibilities for wheel hub innovation are endless, paving the way for a future of improved vehicle performance, safety, and sustainability.
9. Regulations and standards governing wheel hub manufacturing
Regulations and standards are critical in ensuring wheel hubs’ safety, quality, and performance. Manufacturers must adhere to various international, regional, and local regulations and industry standards when designing, producing, and selling wheel hubs.
9.1. International standards
Several international organizations, such as the International Organization for Standardization (ISO), develop and maintain standards related to wheel hub manufacturing. These standards cover various aspects of wheel hub design, production, testing, and quality management. By complying with international standards, manufacturers can ensure their products meet the highest quality and safety levels while gaining access to global markets.
9.2. Regional and local regulations
In addition to international standards, wheel hub manufacturers must comply with regional and local regulations governing vehicle safety and environmental performance. For example, in the European Union, wheel hubs must meet the requirements outlined in the United Nations Economic Commission for Europe (UNECE) regulations. At the same time, in the United States, the National Highway Traffic Safety Administration (NHTSA) sets vehicle safety standards. These regulations may differ between regions, so manufacturers must carefully navigate the requirements of each market they serve.
9.3. Industry certifications and quality management systems
Many wheel hub manufacturers choose to obtain certifications and implement quality management systems (QMS) to demonstrate their commitment to quality and continuous improvement. For example, the International Automotive Task Force (IATF) 16949 certification is a globally recognized automotive quality management standard that builds upon the ISO 9001 standard. By obtaining industry certifications and implementing a robust QMS, manufacturers can enhance their reputation, improve their processes, and increase customer confidence in their products.
10. The future of wheel hub manufacturing
As the automotive industry continues to evolve, so will the materials, manufacturing techniques, and technologies used in wheel hub production. By staying at the forefront of these developments, manufacturers can create innovative products that meet the market’s needs while driving advancements in vehicle performance, safety, and sustainability.
10.1. Smart manufacturing and Industry 4.0

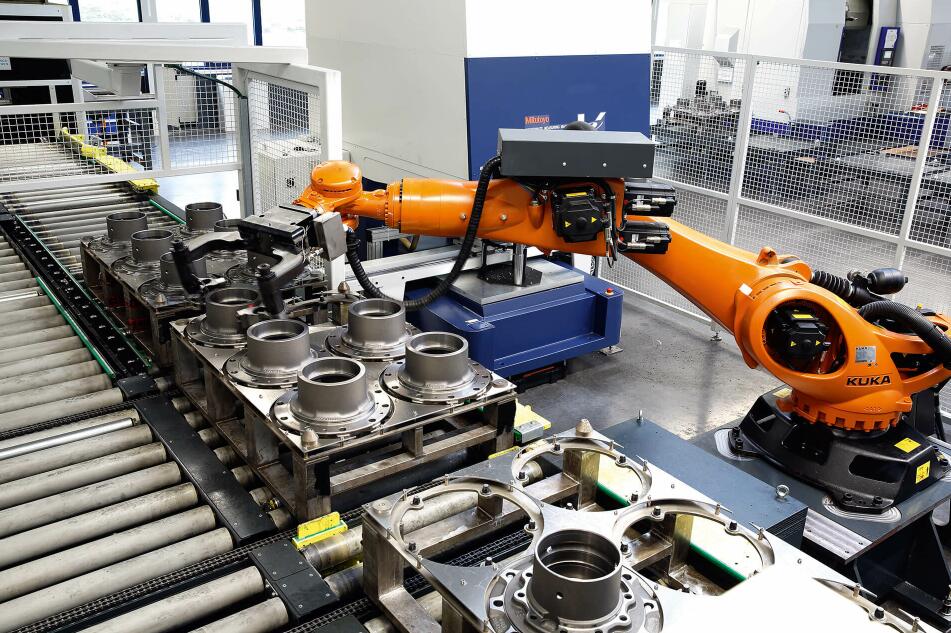

The advent of Industry 4.0 and smart manufacturing can revolutionize wheel hub production. Manufacturers can optimize their production processes, improve product quality, and reduce waste by integrating advanced technologies like the Internet of Things (IoT), robotics, and AI-driven analytics. In addition, the increased use of digital twins, virtual reality, and augmented reality in manufacturing can help engineers design and validate wheel hub designs more efficiently, accelerating product development cycles.
10.2. The role of sustainability in wheel hub manufacturing
As the automotive industry continues to focus on sustainability and reducing its environmental impact, manufacturers must consider the entire life cycle of wheel hubs, from raw material extraction to end-of-life recycling. This may involve using recycled materials, developing more energy-efficient manufacturing processes, and designing wheel hubs for easy disassembly and recycling. Manufacturers that prioritize sustainability will reduce their environmental footprint and appeal to a growing number of eco-conscious consumers.
10.3. The impact of autonomous vehicles
The rise of autonomous vehicles (AVs) is expected to have significant implications for wheel hub materials and manufacturing techniques. As AVs prioritize weight reduction, advanced materials and innovative manufacturing methods will become even more critical. Furthermore, the unique requirements of AVs, such as the need for advanced sensors and electronics, may necessitate new wheel hub designs and production processes.
In conclusion, this comprehensive guide to wheel hub materials and manufacturing techniques has provided an in-depth analysis of wheel hub production, quality control, and maintenance aspects. By understanding the properties of different materials, the advantages and limitations of various manufacturing methods, and emerging trends in the industry, you can make informed decisions when selecting wheel hubs.
